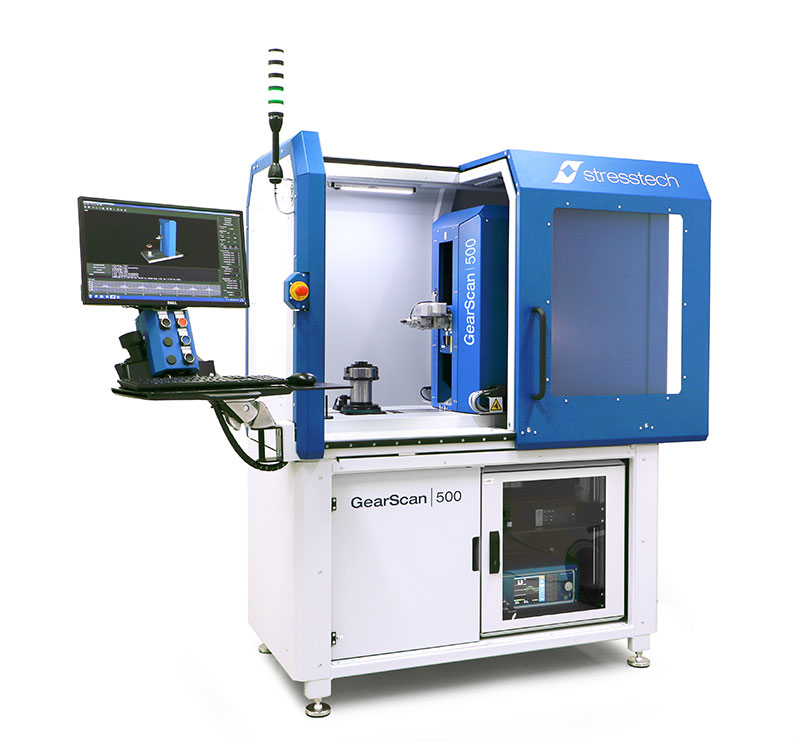

Gearscan 500 open

GearScan 500 is an automated grinding burn and heat treatment defect detection system. It is designed for quality control needs of small to medium sized gears.



  • Programmable measurement positioning with EasyGear software
  • Sensors can be changed with quick coupling without any tools, by only unplugging and plugging in the sensor connector
  • Control panel with:
    • Lamp test button
    • Stop measurement button
    • Reset button
    • Control power off button
    • Door open light
  • Emergency stop
  • Chuck RÖHM KRF 125
  • Sensor carrier
    • Automated X and Z linear movements
    • Automated A and T rotations
  • Integrated cabinet for Rollscan and PC
  • Integrated electric cabinet with main switch
  • Signal light tower
  • Sliding door with safety switch
  • Enabling switch for manual drive
  • Keyboard and monitor mount (Ergotron)
  • Storage

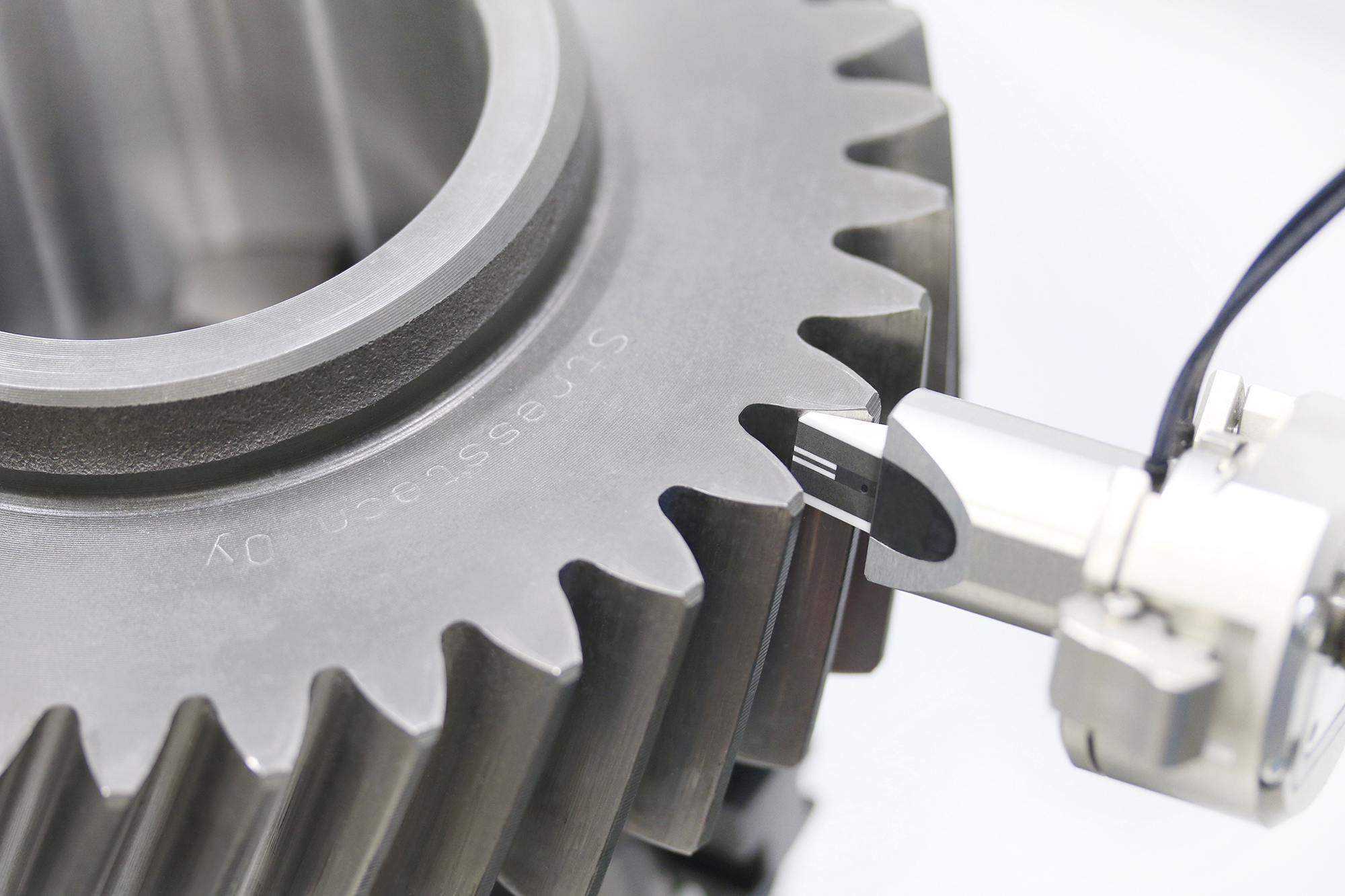

Gearscan 500 measuring

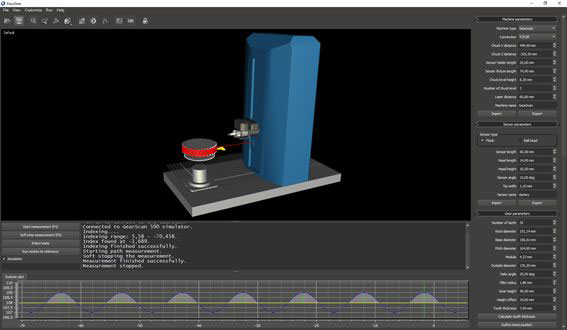

Easygear software
Analyzers:

Barkhausen noise system requires analyzer:

  • Rollscan 250 / Rollscan 350 / Rollscan 320
Sensor:
  • Area to be measured defines size and shape of the Barkhausen noise sensor. One system can be equipped with two different kind of sensors which can be changed manually. Read more about our sensors: Barkhausen noise sensors
Software:
  • ViewScan data analyzing software
